| Specification Parameter |
Technical Data Detail |
| Products |

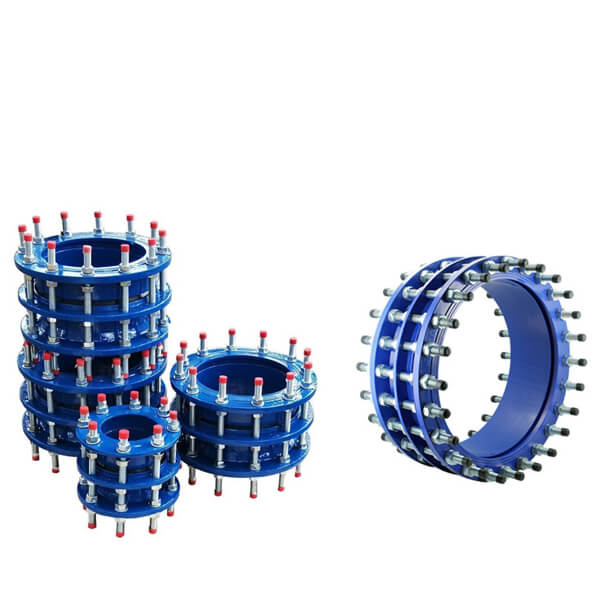

Flanged Dismantling Joint, Telescopic Pipe Joint, Restrained Dismantling Joint |
| Material |
Body / Flanges: Ductile Iron (ASTM A536 / EN 1563), Carbon Steel, Stainless Steel Tie Rods / Studs: Carbon Steel (Galvanized/Zinc Plated), Stainless Steel Gasket: EPDM, NBR |
| Sizes |
2″ – 24″ (Larger sizes available up to 48″ depending on product requirement) |
| Pressure Rating / Wall Thickness |
PN10, PN16, PN25, PN40, ASME Class 150, Class 300 |
| Standards |
AWWA C219, ISO 2531, EN 545, BS EN 1092-1 / ASME B16.5 (Flange Drilling) |
| Finish |
Fusion Bonded Epoxy (FBE) Coating, Hot-Dip Galvanized, Primed/Painted |
| Applications |
Fire Protection, HVAC, Oil Field, Chemical, Municipal (Water & Sewage), Marine |
